游艇桅杆在动态载荷下的缺陷检测
Dynamic loading on a yacht mast
该示例展示了对30米碳纤维复合材料（CFK）游艇桅杆的无损检测应用，检测团队采用SE1传感器结合振动激励设备（Piezoshaker）进行动态载荷测试。时间平均检测结果揭示：桅杆表面裂纹下方存在更大范围的深层脱层缺陷，该缺陷起始于一个微小可见的裂纹。这一发现颠覆了“小裂纹无需修复”的传统认知——通过振动模态分析，可精准判断裂纹是否关联结构性缺陷，避免过度维修或漏检风险。
The example shows an application of NDT on a 30m CFK yacht mast (lower left). The time average result of the SE1 measurement and dynamic loading by our Piezoshaker (lower right) is indicating a larger delimitation below the surface starting from a small visible crack. Usually, small cracks are often seen on the surface, but not all are related to delamination, which needs any repair.

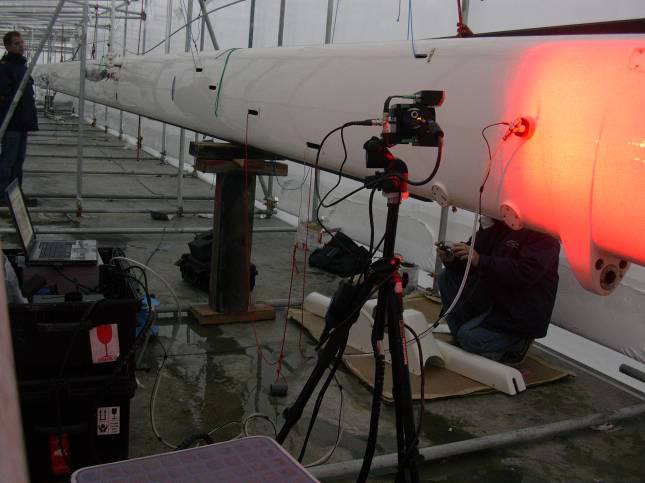

Left：SE1 with Piezoshaker for dynamic loading

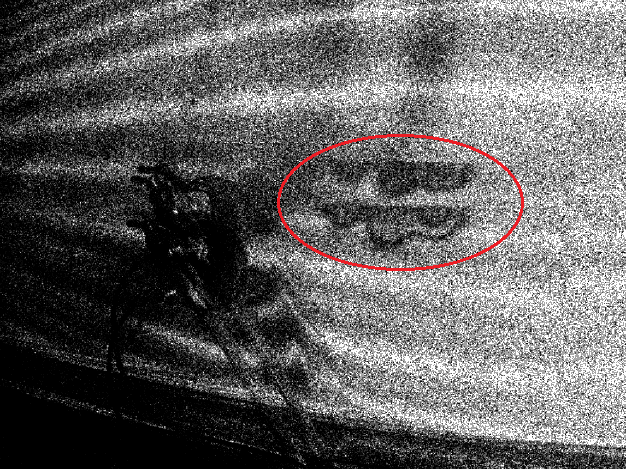

Right：Defect detected by Vibrography / dynamic loading
