解决方案

isi-Studio是一款专为自动与手动控制操作及记录（散斑）干涉测量而设计的专用软件工具。

该软件的核心工作流模块可记录用户操作，其对任意操作序列的撤销与重做功能，既能实现对单项研究设置的精细控制，亦可为工业应用提供自动化解决方案。配合传感器系列使用时，还具备远程控制功能（如剪切操作）。

isi-Studio的典型应用领域包括无损检测（NDT）、振动分析、应变与变形测量。

isi-Studio is a specialized software tool for automatic and manual controlled operating and recording of (speckle) interferometry.

The work-flow kernel of isi-Studio records the user operations. Its recall and re-do options of any operation sequences offers facilities to control individual research set ups as well as automatic solutions for industry problems. Remote controlled features such as shearing are features in conjunction with the sensor series.

Typical applications of isi-studio are non destructive testing (NDT), vibration analysis, strain and deformation measurements.

解决方案特性 Solution Features

自动项目与工作流管理：测量或图像处理的每个操作步骤均被完整记录。

Automatic project and work-flow management: each operation step of your measurement or image operation is recorded.

支持多种采集技术下的散斑干涉图呈现，包括实时相位重建技术及采用更新参考帧的时间平均技术。

Exposure of speckle interferograms in different acquisition techniques, such as real time phase reconstruction and time average technique with renewed reference frame.

isi-Studio提供多种标准滤波器类型及针对相位图不连续性设计的专用滤波器。

isi-Studio offers various standard filter-types and special filters adapted to discontinuities of phase maps.

内置稳健解调/展开算法，可消除相位阶跃并将滤波后的相位图转换为连续曲线。

若相位图已完成滤波与解调，可选择自动评估参数（如光源波长），这些参数将在测量过程中保存至图像属性表。

isi-Studio contains a robust demodulation or unwrapping algorithm that removes the phase steps and converts the filtered phase map into a continuous plot.

If your phase map is filtered and demodulated, there is the choice to use automatic evaluation of the parameters, such as the wave length of the light source used, saved in the image property sheets during the measurements.

为呈现或分析结果，isi-Studio提供2D/3D图谱等工具。若需将结果嵌入其他文档，可选择通用图像格式（bmp、tiff、jpg等）导出，并支持与Matlab、Excel等软件的数值互通。另可通过报告生成器创建文档。

For presentation or analysis of your results, isi-Studio offers tools such as 2D or 3D plots. If you want to include your results into other documents, you have the choice of common input and output image formats (bmp, tiff, jpg, etc.) as well as the compatibility for numerical exchanges to Math-Lab, Excel and other software. Alternative the report generator can be used to create a report document.

以下实例阐释isi-Studio的功能：

An practical example to eplain the the functionality of isi-Studio:

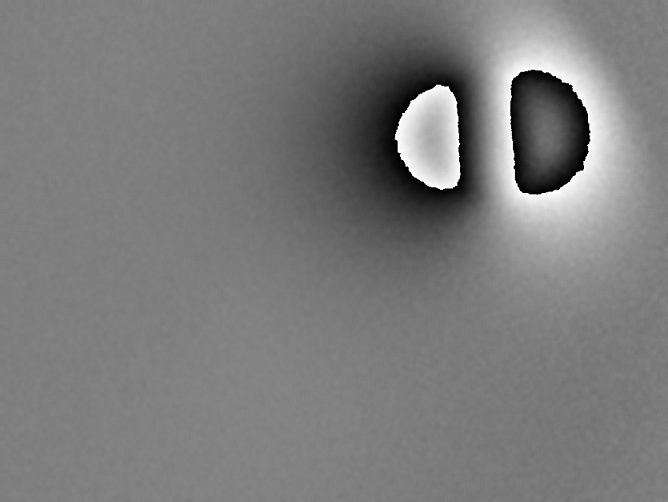

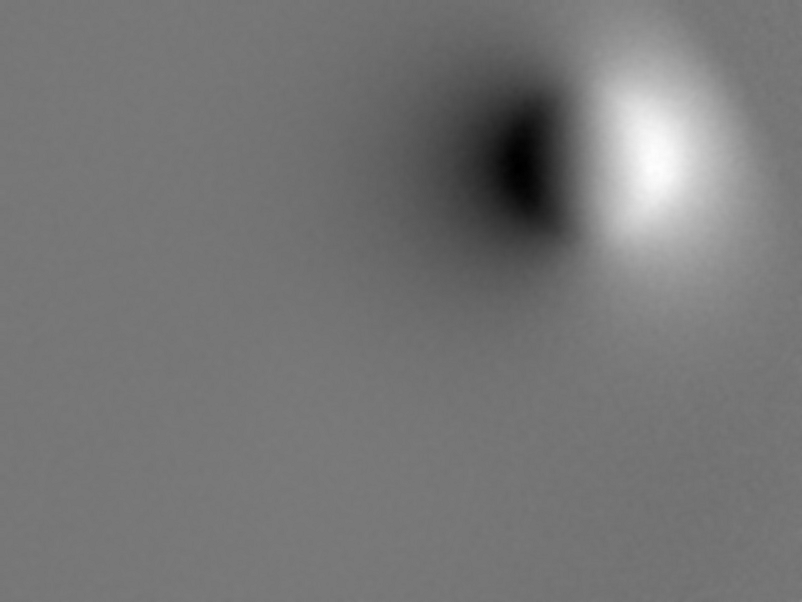

重建：相对相位变化	滤波相位变化	解调相位分布
Recontruction:relative phase change	Filtered phase change	Demodulated phase distribution

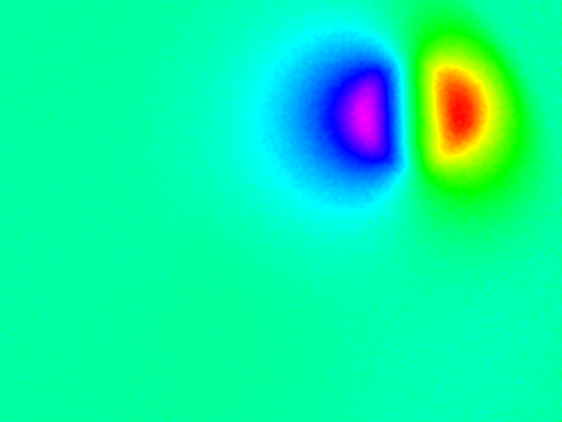

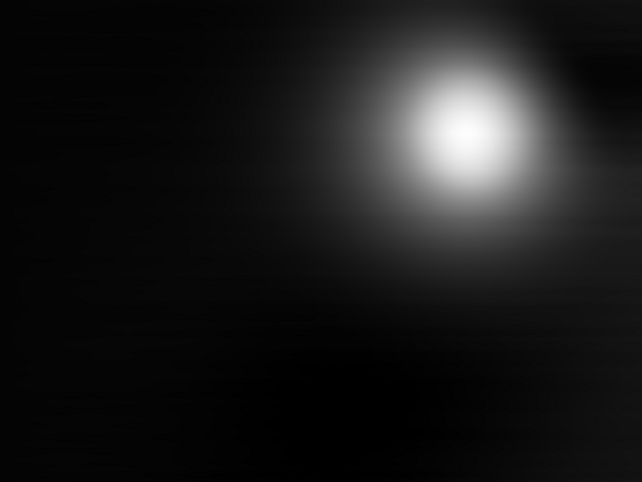

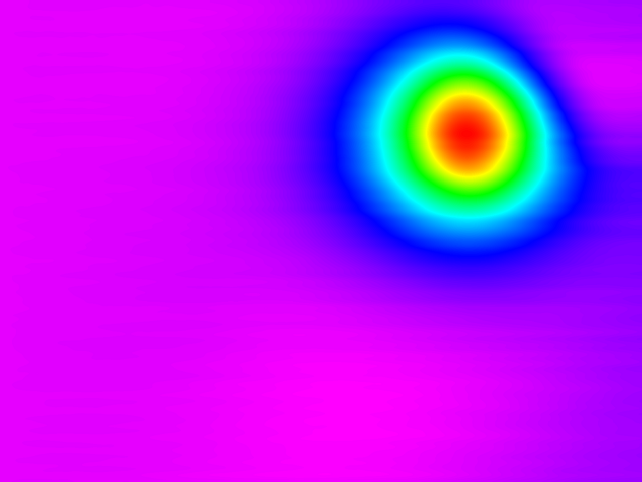

伪彩色图像	集成：变形幅度	定量伪彩色图像
False-colour image	Integration: deformation amplitude	Quantitative false-colour image
